AAW-A(B)S-RF Rotary Flange Output Right Angle Gearbox

Features

AAW-RF is a hollow shaft right angle gearbox.The output flange can be rotated and pressure pipes or signal lines can be installed throughout the middle hole of the body.High efficiency combination of planetary body structure and precise spiral bevel features the right angle gear box excellent rigid structure for the output loading changes especially for big occasions.

The input side of AAW-RF right angle spiral bevel gearbox is attached with motor adapter,can be easy installed by 5 directions.

Nominal torques of AAW-RF right angle gearbox is 30~4000Nm,applicable for a variety of industrial machinery uses in transmission mechanism.

AAW-RF right angle spiral bevel gearbox has a large range of ratios:

1-stage: 1:2~1:30

2-stage: 1:24~1:300

AAW-RF is a low backlash right angle gearbox:

1-stage : 1arcmin~5arcmin

2-stage : 2arcmin~8arcmin

High efficiency makes the AT-FC right angle gearbox rotate with low noise and generate less heat:

1-stage: ≥ 90%

2-stage: ≥ 85%

The hollow shaft right angle gearbox has eleven sizes available: AAW070AS / AAW080AS / AAW110AS / AAW135AS / AAW135BS / AAW165AS / AAW165BS / AAW200AS / AAW200BS/ AAW320AS / AAW320BS

The hollow shaft right angle gearbox suitable for semiconductor equipment, LCD rotating, PCB equipment, printing presses, AGV, etc.

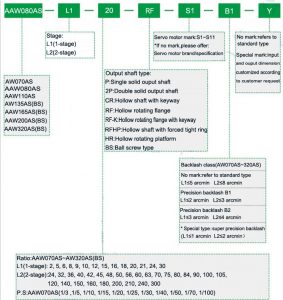

Model Indication

Parameters

Model No.StageRatio(i)AAW070ASAAW080AS
AAW110AS
AAW135AS
AAW135BSAAW165AS
AAW165BS
AAW200ASAAW200BS


AAW320AS



AAW320BS
Rated Output
Torque(Nm)
L1 2,  3,
 5, 10
3080250450*800*2000*3500*
6*802004002807006001500100035002000
8*852504503208006601850110040002300
10*852504503208006601850110040002300
12*8022543532075066018501100*2300
14*802154252807506001750100035002200
16*8021041527070060017001000**
203070200400240700460165090030001900
L23030802004002807006001500100035002000
32*852504503208006601850110040002300
4030852504503208006601850110040002300
5030852504503208006601850110040002300
56*852504503208006601850110035002300
60*802004002807006001500100035002000
7030852504503208006601850110035002200
80*852504503208006601850110035002300
10030852504503208006601850110035002300
120*8022543529075063017501050*2200
140*802154252807506301750100032002100
160*802104152707006001700950**
2003070200400240700460170090030001900
Max. Output
Torque(Nm)
L1,L23~1002.5 Times of Normal Output Torque
Input
Speed(rpm)
L1,L23~10030003000300030003000300030003000300030003000
Standard Back-lash (arc-min)L13~10≤5≤5≤5≤5≤5≤5≤5≤5≤5≤5≤5
L212~100≤8≤8≤8≤8≤8≤8≤8≤8≤8≤8≤8
Precision
 Backlash
B2(arc-min)
L13~10≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3
L212~100≤4≤4≤4≤4≤4≤4≤4≤4≤4≤4≤4
Precision
Backlash
B1(arc-min)
L13~10≤2≤2≤2≤2≤2≤2≤2≤2≤2≤2≤2
L212~100≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3≤3
Precision
Backlash
B0(arc-min)
L13~10≤1≤1≤1≤1≤1≤1≤1≤1≤1≤1≤1
L212~100≤2≤1≤1≤1≤1≤1≤1≤1≤1≤1≤1
Max. Radial
Force(N)
L1,L23~10028003900550098009800165001650024100241003560032600
Max. Axial
Force(N)
L1,L23~10028003900550098009800165001650024100241003260032600
Efficiency
(%)
L13~1090%
L212~10085%
Weight(kg)L13~102.57.84.320.815.535.528.55540.5300270
L212~1003.89.26.324.318.240.531.265.548.5330290
Operating
Temp.
L1,L23~100-10℃~+80℃
LubricationL1,L23~100COMPLEX  HV2
Mounting
Position
L1,L23~100Any Direction
Noise Level
(db)
L1,L23~100≤65≤68≤68≤68≤68≤70≤70≤72≤72≤72≤72

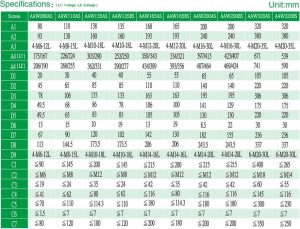

Dimensions

Input Sizes

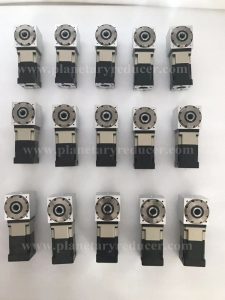

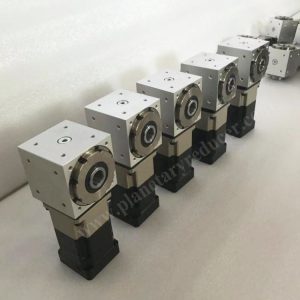

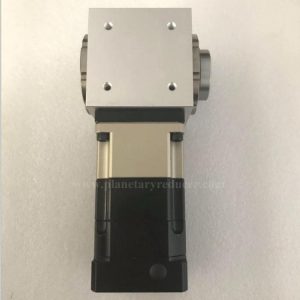

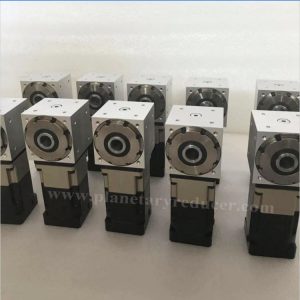

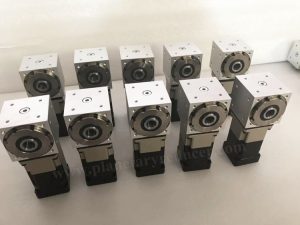

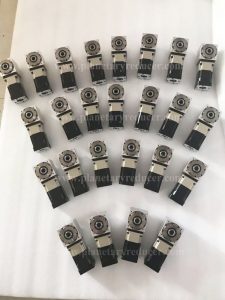

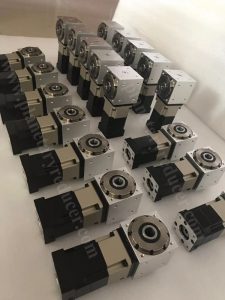

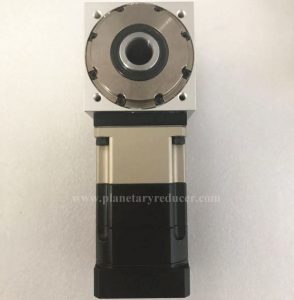

Real Pictures
