Overview

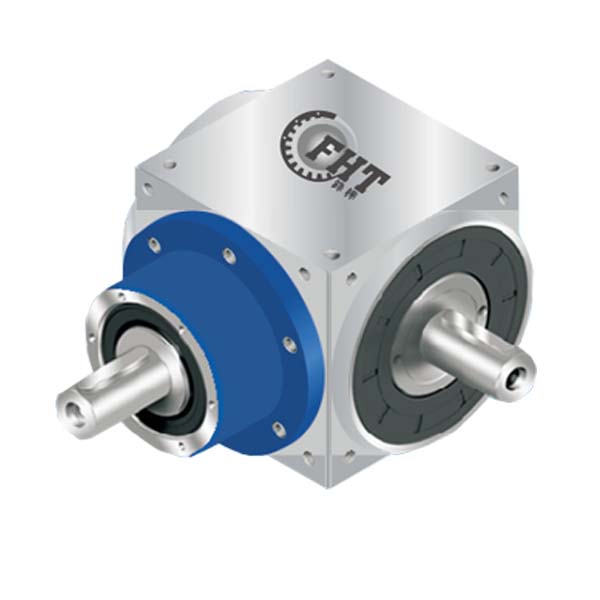

AT-L1(R1) right angle spiral bevel gearbox is with one input shaft and one output shaft on left or right.The model AT-L1 means output shaft on left side and AT-R1 means output shaft on right.The bevel gearbox is with small installation size and extremely light weight housing that offers an easy mount..AT-L1(R1) bevel gearboxes have extensive range of sizes as below:
AT065L1 / AT075L1 / AT090L1 / AT110L1 / AT140L1 / AT170L1 / AT210L1 /AT240L1 / AT280L1
AT065R1 / AT075R1 / AT090R1 / AT110R1 / AT140R1 / AT170R1 / AT210R1 /AT240R1 / AT280R1
The case-hardened bevel gear tooth system contributes to low backlash,low rotation noise and energy-efficient through high level of efficiency of 98%.
Application
AT-L1(R1) right angle bevel gearboxes are widely applied to Printing-Converting,Packaging,Test Stands,Wire-Cable,General Purpose,Tension Control,Registration Control,Right Angle Drives,Intermediate Tension Control,Pre-stretch Tension Control,Speed and Torque Distribution,Precise Simulation of Variable Torque,Speed Increaser,Ring Gear & Pinion Drives -Very High Performances,Tension Control Wire Cable,Main Speed Adjustment,Pulling Caterpillar,Differential Speed Adjustment,Right Angle Bevel Gearboxes,Machine Tools, Belt Conveyors, Gantry Robot, Auto packing sealing machine,Dispenser Robot, Loader robot and some other heavy load case.
Model indication
Parameters
Moment of inertia
| Specification | Stage | Ratio | AT065L AT065L1 AT065H AT065C AT065R1 AT065 LM AT065 RM AT065 4M | AT075L AT075L1 AT075H AT075C AT075R1 AT075 LM AT075 RM AT075 4M | AT090L AT090L1 AT090H AT090C AT090R1 AT090 LM AT090 RM AT090 4M | AT110L AT110L1 AT110H AT110C AT110R1 AT110 LM AT110 RM AT110 4M | AT140L AT140L1 AT140H AT140C AT140R1 AT140 LM AT140 RM AT140 4M | AT170L AT170L1 AT170H AT170C AT170R1 AT170 LM AT170 RM AT170 4M | AT210L AT210L1 AT210H AT210C AT210R1 AT210 LM AT210 RM AT210 4M | AT240L AT240L1 AT240H AT240C AT240R1 AT240 LM AT240 RM AT240 4M | AT280L AT280L1 AT280H AT280C AT280R1 AT280 LM AT280 RM AT280 4M |
| Moment of Inertia kg.cm2 | 1
| 1 | 0.51 | 1.3 | 3.16 | 7.7 | 23.57 | 58.99 | 195.4 | 369.34 | 799.12 |
| 1.5 | 0.64 | 1.16 | 2.82 | 6.74 | 19.37 | 49.28 | 155.45 | 283.58 | 595.78 | ||
| 2 | 0.44 | 1.11 | 2.7 | 6.31 | 17.75 | 45.35 | 140.24 | 249.74 | 511.76 | ||
| 3 | 0.43 | 1.09 | 2.66 | 6.17 | 17.18 | 44.01 | 134.95 | 237.71 | 483.06 | ||
| 4 | 0.43 | 1.09 | 2.65 | 6.13 | 17.06 | 43.7 | 133.58 | 234.72 | 476.26 | ||
| 5 | 0.43 | 1.09 | 2.65 | 6.12 | 17.02 | 43.6 | 133.14 | 233.67 | 473.58 |
Weight
| Model No. | Stage | Ratio | AT065 | AT075 | AT090 | AT110 | AT140 | AT170 | AT210 | AT240 | AT280 | |
| L series | kg
| 1 | 1~5 | 2.6 | 4.2 | 6.8 | 11.6 | 19.8 | 34.8 | 66.2 | 98.1 | 155.7 |
| L1 series | 1 | 1~5 | 2.6 | 4.1 | 6.7 | 11.5 | 19.5 | 34.2 | 65.1 | 96.6 | 153.4 | |
| H series | 1 | 1~5 | 2.5 | 3.9 | 6.4 | 11 | 18.1 | 31.6 | 60 | 89.4 | 143.4 | |
| C series | 1 | 1~5 | 2.8 | 4.2 | 6.9 | 11.4 | 19.6 | 33.7 | 63.3 | 97.9 | 149.1 | |
| R1 series | 1 | 1~5 | 2.6 | 4.1 | 6.7 | 11.5 | 19.5 | 34.2 | 65.1 | 96.6 | 153.4 | |
| LM series | 1 | 1 | 3.5 | 5.6 | 9 | 15.2 | 24.1 | 42.4 | 81.4 | 122 | 190.9 | |
| RM series | 1 | 1 | 3.5 | 5.6 | 9 | 15.2 | 24.1 | 42.4 | 81.4 | 122 | 190.9 | |
| 4M series | 1 | 1 | 3.5 | 5.6 | 9.1 | 15.4 | 24.8 | 42.6 | 82.5 | 123.5 | 193.3 | |

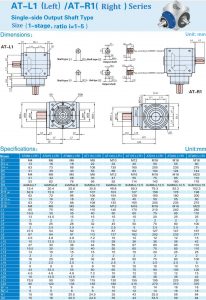

Dimensions
