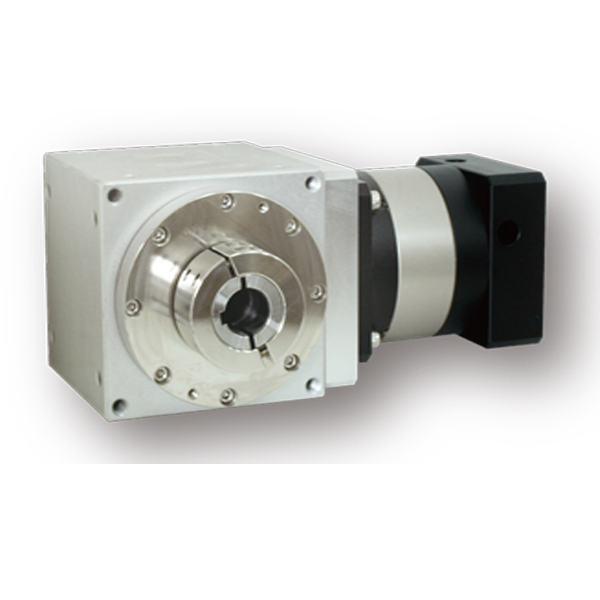

PAW-C-K Single hollow shaft with keyway 90 degree servo gearbox

Features

PAW-C-K is the single hollow shaft clamping gearbox with keyway.The right angle design makes the gearbox a perfect option for the motion control that requires to change transmission direction or limited installation space.

PAW-C-K features low backlash,high torque and high rigidity ,which offers a smooth,reliable and low noise rotary motion with long service life time.

PAW-C-K right angle spiral bevel gearbox offers the ratio from 3:1 to 100:1 ,suitable for different speed of the motion control.

PAW-C-K right angle gearbox have a broad range of ratio for option:

1-stage:3, 4 ,5, 6, 7, 10

2-stage:12, 15, 16, 20, 25, 28, 30, 35, 40, 50, 60, 70, 100

The 90 degree gearbox nominal torque is 10Nm~1200Nm,suitable for different loads of the motion control.

PAW-C-K 90 degree right angle gearbox have three types of backlash:

Standard backlash: 10~15arcmin

Precision backlash(B2):5~8arcmin

Precision backlash(B1):3~5arcmin

Sizes available: PAW070A / PAW085A / PAW105A / PAW125A / PAW125B / PAW150A / PAW150B / PAW180A / PAW180B

PAW-C-K spiral bevel gearbox is widely used in Printing ,Converting,Packaging,Test Stands,Wire – Cable,General Purpose,Tension Control,Registration Control,Right Angle Drives,Intermediate Tension Control,Pre-stretch Tension Control,Speed and Torque Distribution,Precise Simulation of Variable Torque,Speed Increaser,Ring Gear & Pinion Drives – Very High Performances,Tension Control Wire Cable,Main Speed Adjustment,Pulling Caterpillar,Differential Speed Adjustment,Right Angle Bevel Gearboxes,Machine Tools,etc.

Model indication

Parameters

Model No.	Unit	Stage	Ratio(i)	PAW055A	PAW070A	PAW085A	PAW105A	PAW125A	PAW125B	PAW150A	PAW150B	PAW180A	PAW180B
Rated Output Torque	Nm	L1	1/3	10	30	40	100	230	100	400	230	900	450
			1/4	15	30	50	150	250	160	500	330	1100	550
			1/5	15	30	50	150	250	160	500	330	1200	550
			1/6	14	30	42	120	230	160	500	290	1100	530
			1/7	14	30	42	120	230	160	500	290	1100	530
			1/10	10	30	40	100	230	100	400	230	900	450
		L2	1/12	10	30	40	100	230	100	400	230	900	450
			1/15	10	30	40	100	230	100	400	230	900	450
			1/16	15	30	50	150	250	160	500	330	1200	550
			1/20	15	30	50	150	250	160	500	330	1200	550
			1/25	15	30	50	150	250	160	500	330	1200	550
			1/28	15	30	50	150	250	160	500	330	1100	550
			1/30	10	30	40	100	230	100	450	330	900	450
			1/35	15	30	50	150	250	160	500	330	1100	550
			1/40	15	30	50	150	250	160	500	330	1100	550
			1/50	15	30	50	150	250	160	500	330	1100	550
			1/60	15	30	50	150	250	160	500	330	1100	550
			1/70	12	30	50	120	250	160	500	290	1100	550
			1/100	10	30	40	100	230	100	400	230	900	450
Max. Output Torque	Nm	L1,L2	3-100	3 Times of Normal Output Torque
Input Speed	Rpm	L1,L2	3-100	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Standard Backlash	Arcmin	L1	3-10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Standard Backlash	Arcmin	L2	12-100	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15
Precision Backlash B2	Arcmin	L1	3-10	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Precision Backlash B2	Arcmin	L2	12-100	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8
Precision Backlash B1	Arcmin	L1	3-10		≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Precision Backlash B1	Arcmin	L2	12-100		≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Max. Radial Force	N	L1,L2	3-100	1100	3250	3250	5850	9100	9100	14300	14300	19500	19500
Max. Axial Force	N	L1,L2	3-100	650	3250	3250	5850	9100	9100	14300	14300	19500	19500
Efficiency	%	L1	3-10	90%
Efficiency	%	L2	12-100	85%
Weight	Kg	L1	3-10	1.8	2.9	3.8	10.5	15.5	12.5	31	25.5	56.5	37.5
Weight	Kg	L2	12-100	2.1	3.3	4.3	11.2	17	13.2	35.5	28.5	63.5	42
Operating Temp.	℃	L1,L2	3-100	（-10℃~+80℃）
Lubrication		L1,L2	3-100	COMPLEX HV2
Mounting Position		L1,L2	3-100	Any Direction
Noise Level	dB(A)	L1,L2	3-100	≤68	≤68	≤68	≤68	≤70	≤70	≤72	≤72	≤74	≤74

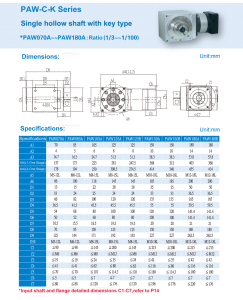

Dimensions
