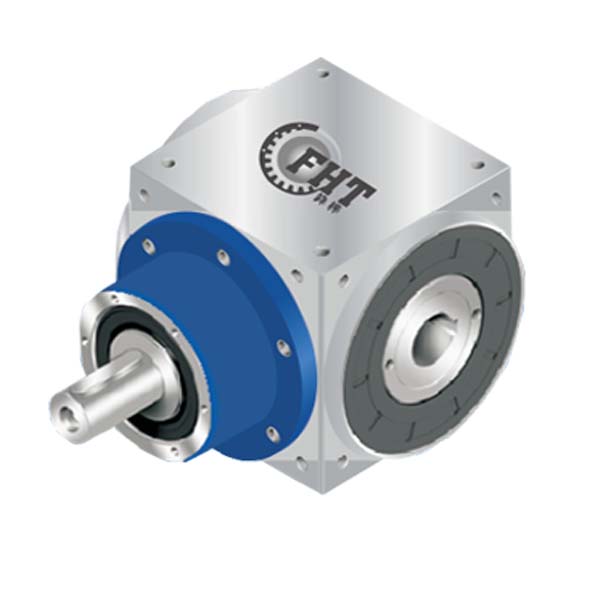

AT-C Hole Output Steering Gearbox

AT-C is the right angle spiral bevel gearbox,featuring one input shaft and one output hole with hoop.The spiral bevel gears and stainless steel housing constitute a compact structure.There fore AT-C is with light weight,low noise and easy mount,deeply favored by a majority of users.

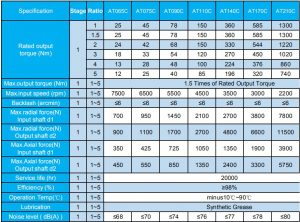

AT-C right angle spiral bevel gearbox has a full range of nominal torque from 12Nm to 3200Nm,suitable for different kinds of transmission load capacity.

AT-C steering gearbox has the ratio 1 / 1.5 / 2 / 3 / 4 / 5, a good option for the rotation system that need small ratio with changeable motion direction.

AT-C is a high precision steering gearbox,the backlash is not more than 6arcmin.The high efficiency(not less than 98%)makes the bevel gearbox excellent performance and saving energy.

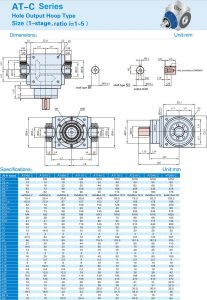

AT-C right angle gearbox has a extensive range for frame sizes:AT065C / AT075C / AT090C / AT110C / AT140C / AT170C / AT210C / AT240C / AT280C,it can match the motors with different specifications.

Application

AT-C right angle spiral bevel gearbox is widely applied to Printing-Converting,Packaging,Test Stands,Wire-Cable,General Purpose,Tension Control,Registration Control,Right Angle Drives,Intermediate Tension Control,Pre-stretch Tension Control,Speed and Torque Distribution,Precise Simulation of Variable Torque,Speed Increaser,Ring Gear & Pinion Drives -Very High Performances,Tension Control Wire Cable,Main Speed Adjustment,Pulling Caterpillar,Differential Speed Adjustment,Right Angle Bevel Gearboxes,Machine Tools, Belt Conveyors, Gantry Robot, Auto packing sealing machine,Dispenser Robot, Loader robot and some other heavy load case.

Moment of inertia
