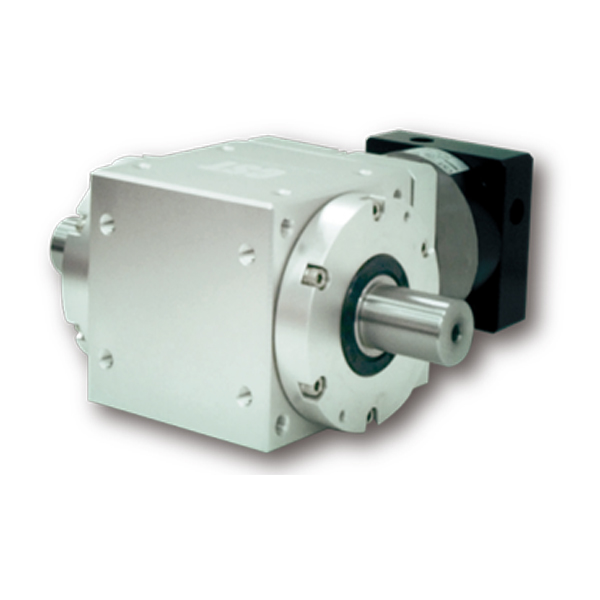

PAW-2P double output shaft 90 degree right angle gearbox

Features

PAW-2P is the right angle gearbox with two output shaft,consisted of high efficiency spiral bevel gears and planetary part with spur gears,so it is also called spiral bevel planetary gearbox.

The spiral bevel gears of PAW-2P right angle gearbox are made of high stretch SCM415 material and tooth hardness HRC60°~ HRC62°.Such excellent structure features PAW-2P with high strength and high rigidity and best for heavy loading change.

PAW-2P 90 degree right angle gearbox is with motor adapter on the input side,makes motor easily mount the gearbox.The planetary frame and 90 degree structure make the gearbox compact and perfectly applied to the transmission mechanism that need to change the motion direction with limited space.

PAW-2P right angle gearbox generates low heat and low noise when rotating.This allows a continuous high speed without sacrifice to performance and favored by a majority of users.

PAW-2P right angle gearbox have a variety of ratio adapt to different speed and torque requirements:

1-stage:3, 4 ,5, 6, 7, 10

2-stage:12, 15, 16, 20, 25, 28, 30, 35, 40, 50, 60, 70, 100

The 90 degree gearbox has a wide range of nominal torques 10Nm~1200Nm,suitable for different loads of the transmission system.

PAW-2P 90 degree right angle gearbox have three types of backlash:

Standard backlash: 10~15arcmin

Precision backlash(B2):5~8arcmin

Precision backlash(B1):3~5arcmin

Sizes available: PAW070A / PAW085A / PAW105A / PAW125A / PAW125B / PAW150A / PAW150B / PAW180A / PAW180B

Widely used in Printer, Belt Conveyors, Gantry Robot, Auto packing sealing machine, Packing machine (vertical pillow), Packing machine (horizontal pillow), Dispenser Robot, Loader robot and some other heavy load case.

Model indication

Parameters

Model No.	Unit	Stage	Ratio(i)	PAW055A	PAW070A	PAW085A	PAW105A	PAW125A	PAW125B	PAW150A	PAW150B	PAW180A	PAW180B
Rated OutputTorque	Nm	L1	1/3	10	30	40	100	230	100	400	230	900	450
			1/4	15	30	50	150	250	160	500	330	1100	550
			1/5	15	30	50	150	250	160	500	330	1200	550
			1/6	14	30	42	120	230	160	500	290	1100	530
			1/7	14	30	42	120	230	160	500	290	1100	530
			1/10	10	30	40	100	230	100	400	230	900	450
		L2	1/12	10	30	40	100	230	100	400	230	900	450
			1/15	10	30	40	100	230	100	400	230	900	450
			1/16	15	30	50	150	250	160	500	330	1200	550
			1/20	15	30	50	150	250	160	500	330	1200	550
			1/25	15	30	50	150	250	160	500	330	1200	550
			1/28	15	30	50	150	250	160	500	330	1100	550
			1/30	10	30	40	100	230	100	450	330	900	450
			1/35	15	30	50	150	250	160	500	330	1100	550
			1/40	15	30	50	150	250	160	500	330	1100	550
			1/50	15	30	50	150	250	160	500	330	1100	550
			1/60	15	30	50	150	250	160	500	330	1100	550
			1/70	12	30	50	120	250	160	500	290	1100	550
			1/100	10	30	40	100	230	100	400	230	900	450
Max. Output Torque	Nm	L1,L2	3-100	3 Times of Normal Output Torque
Input Speed	Rpm	L1,L2	3-100	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Standard Backlash	Arcmin	L1	3-10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Standard Backlash	Arcmin	L2	12-100	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15
Precision Backlash B2	Arcmin	L1	3-10	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Precision Backlash B2	Arcmin	L2	12-100	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8
Precision Backlash B1	Arcmin	L1	3-10		≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Precision Backlash B1	Arcmin	L2	12-100		≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Max. Radial Force	N	L1,L2	3-100	1100	3250	3250	5850	9100	9100	14300	14300	19500	19500
Max. Axial Force	N	L1,L2	3-100	650	3250	3250	5850	9100	9100	14300	14300	19500	19500
Efficiency	%	L1	3-10	90%
Efficiency	%	L2	12-100	85%
Weight	Kg	L1	3-10	1.8	2.9	3.8	10.5	15.5	12.5	31	25.5	56.5	37.5
Weight	Kg	L2	12-100	2.1	3.3	4.3	11.2	17	13.2	35.5	28.5	63.5	42
Operating Temp.	℃	L1,L2	3-100	（-10℃~+80℃）
Lubrication		L1,L2	3-100	COMPLEX HV2
Mounting Position		L1,L2	3-100	Any Direction
Noise Level	dB(A)	L1,L2	3-100	≤68	≤68	≤68	≤68	≤70	≤70	≤72	≤72	≤74	≤74

Features

Model indication

Parameters

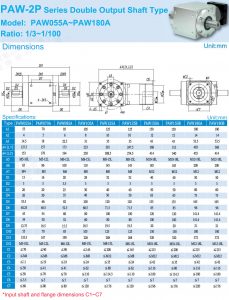

Dimensions

Download

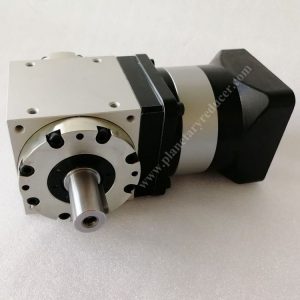

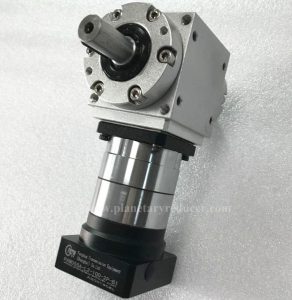

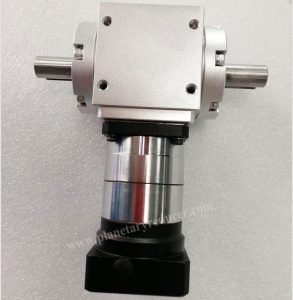

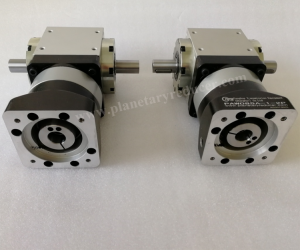

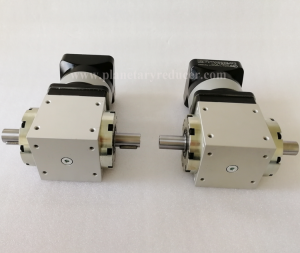

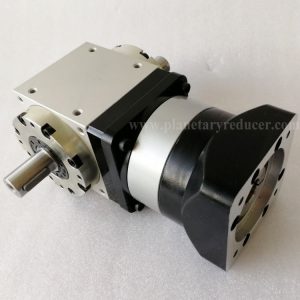

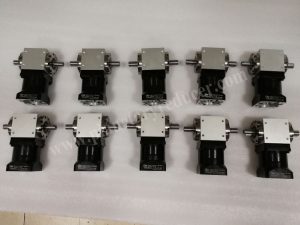

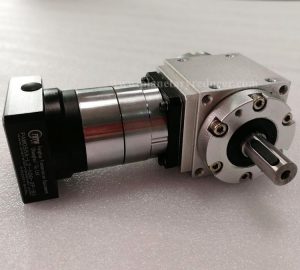

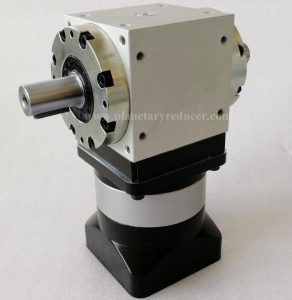

Real Pictures
