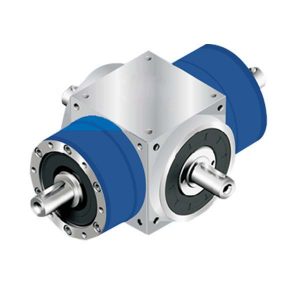

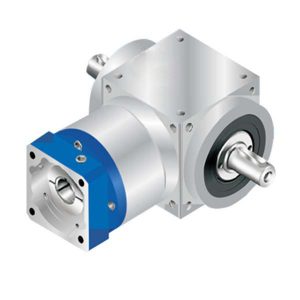

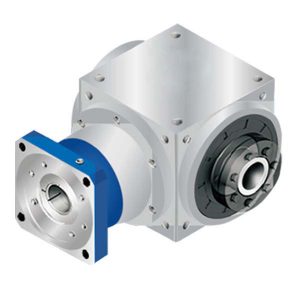

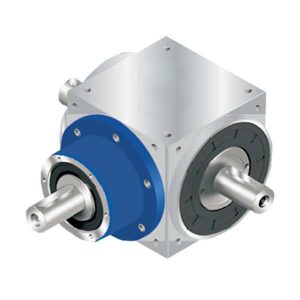

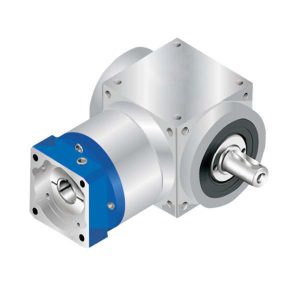

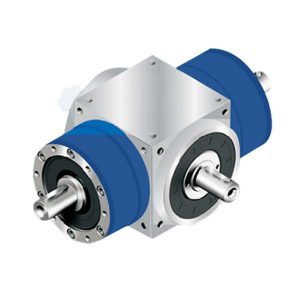

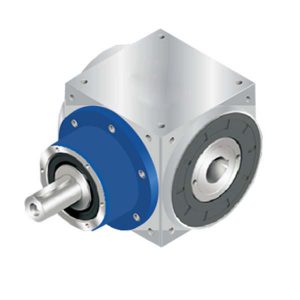

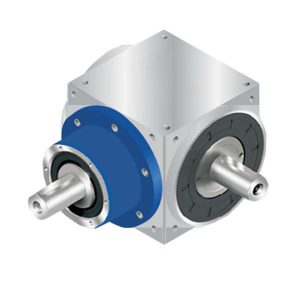

FHT AT-general type gearbox,also called steering gearbox,right angle gearbox ,spiral bevel gearbox and 90 degree servo gearbox.This AT gearbox is with large range of ratio and torque,matches any power of servo motor and used in heavy duty occasion,especially in the application that needs to change the transmission direction.
AT-general type gearbox is used in printer, belt Conveyors, gantry Robot, auto packing sealing machine, packing machine (vertical pillow), packing machine (horizontal pillow), dispenser Robot, loader robot and some other heavy load case
FHT AT gearbox body is made of integrated stainless steel ,to ensure maximum rigidity and corrosion resistance.Multiple precision machined surface for easy assembly.
The adoption of the top spiral worm gear design software and the optimized design of contact tooth surface make the even load and allow high torque output.Gears are made of high strength carburizing alloy steel and the grinding precision is up to the standard of DIN 5 level.
Multiple stainless steel output and input shaft design can be applied to various of industrial applications needs.
The combination of high-precision grinded worm bevel gear set and the optimized the design of planetary gear set can make the AT-general type gearbox reduction speed up to 500:1.
FHT company AT gearbox is with high torque and low backlash design of the compact structure,it is suitable for the application of precision servo motor.
Parented oil seal design,maintenance-free without replacing the lubrication oil,ensure the AT-type gearbox long operating life.
