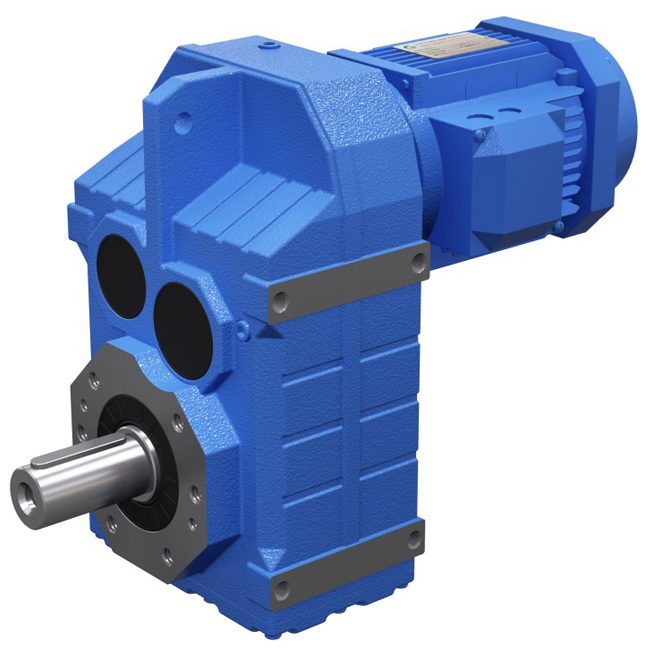

F series helical gear reducer is made by the combination of international technology, it has very high technological content.
1.Space-save, high reliability, high overload capacity, the power can reach to 200KW.
2.High superior performance, low energy consumption, high efficiency of more than 95%.
3.Small vibration, high energy saving, low noise.
4.Modular design, multiply motor combinations, fine ratio classification, suitable for various working conditions.
5.The design of outline is suitable for full range installations.
1.Before select a model according to parameter sheet, please load bearing and working condition
2.Specify the service factor and service factor for ambient temperature change as per daily working time and hourly start times.
3.Confirm the motor specification according to the selected reducer model, load torque,ratio and output speed.
4.Customization is accepted by us, if need, advise your idea.
F series reducers are widely used in industrial production equipment and transmission equipment. Textile machine, food machine, beer and beverage machine, chemical industry,excalator, automatic warehouse equipment,metallurgy industry, tobacco industry, environment protection industry, logistics.
1.Please make the central axis centered when install the gear motor, the error shouldn’t be greater than use compensation value of coupler. Good centring can extend the service life and realize a ideal transmission efficiency.
2.Hummer knocking is forbidden when mounting driving medium on the output shaft. Generally we make use of assemble fixture and inner thread of shaft, bolt to press driving medium, otherwise the inner parts of gear motor may be damaged.
3.Gear reducer should be tightly mounted on stable horizontal base, make sure the oil can be exhausted from oil drain tank and the cold air can circulate fluently. Because vibration and noise will be caused by unreliable base during running, the bearing and gears also will be damaged. When driving medium has outthrust or use gear, chain wheel to drive, please add a protective device.
4.As per the prescribed mounting unit, guarantee the workers can close to oil pointer, breather plug and oil drain plug more conveniently. After move gear reducer to its place, inspect comprehensively the compaction reliability of each fasteners. Gear reducer is lubricated by oil grease, please replace the screw plug with breather plug before operation.
Note: After a certain time running of the gear motor, please regularly check the gearbox oil level to avoid the probable leakage caused by motor shell. If the working temperature is too low or too high, you can change the lubricant oil number.
1.Please replace the oil after first usage at 200-300 hours. Oil quality should be inspected during the further using. The oil which mixed with impurities or degenerative oil should be replaced timely.
2.Generally, for the long-time continuous working reducer, please change the oil to be new after usage of 5000 hours or every year. For long-term unused reducer, please change the oil before run it again. The new oil should be the same as before, mixing with different number oil is not allowed, the same number oil and different viscosity oil can mix.
3.Please don’t exchange the oil until the reducer cool and without danger of burn. While the reducer still should be keep warm, the oil viscosity will increase due to completely cooling, then injecting new oil is difficult. Note: cut off the power supply of transmission unit to avoid unintentioal power-on.
4.During operation, if the oil temperature rise is over than 80 degree or the oil pool temperature exceed 100 degree or there is abnormal noise, please stop using and inspect the reason to do troubleshooting. Continue to use the reducer after exchange lubricate oil.
1. How to store the reducer?
1)Keep the reducer in a clean and dry place.
2)If it will be stored outdoor or in a humid place, please put the reducer in a box and packed tightly with plastic bag to avoid the rain and external erosion. ( take measure of anti-condensation and anti-rust)
2. Cautions during operation:
1)Overload is forbidden.
2)Input speed can not exceed the proper max. Speed.
3)Please stop and check the gearbox if there are the following occurs:
Temperature rise suddenly
Abnormal big noise in a sudden
Speed became unstable suddenly
The following cost and damages are not included in our warranty:
2)If the Reducer connect with or insert in a unit, when we dismounting or mounting on the unit and other extra action, there will be a cost.( this is not contained in the warranty)
3)The indirect damage that user lost the appliance chance or business break off due to reducer breakdown.
4)Other derivative and accompanying damages.
