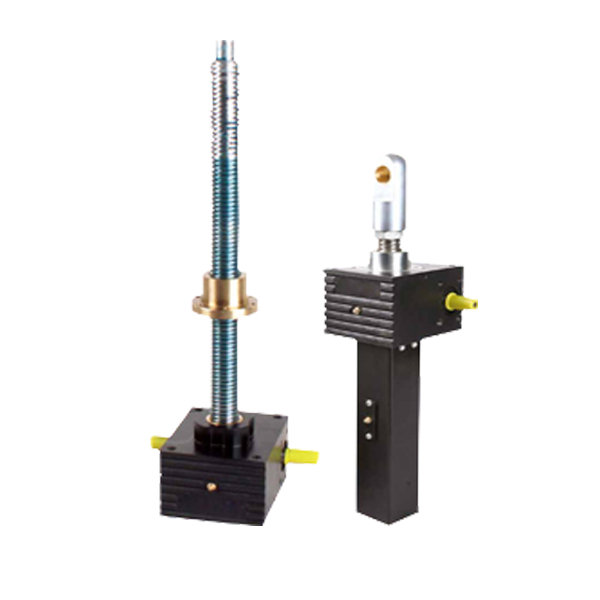

SJA series screw lift can be modular combined with reducers and various accessories to meet any requirements from customers.
There are different kinds of SJA screw lift:
Screw lift with common gears, Ball screw lift, Anti-backlash screw lift, Screw lift with safety nut
Classification as per movement type: One is screw lift with screw rod movement, the other one is screw lift with nut movement.
The working temperature of this screw lift is -10℃-40℃, if you need -40℃-+70℃, please contact us. Both double and three screw lead can be offered, the lift speed proportionally increase.
1.Accurate positioning: Attached with anti-backlash unit to make precision reach to 0.05mm.
2.With absolute mechanical synchronous lifting system: Multiple screw lifts can be synchronously driven by one motor, mechanical synchronization.
3.Use safety nut design to monitor the product wear condition and eliminate hazards.
4.Modular combined with reducer and various accessories to meet any needs from customers.
5. Thrust force range from 500KG to 100T
6. The stroke can reach to 8m, but the stability and guide mechanism should be taken into consideration.
7. 30% of working days, of the load factor is small, working days can be properly increased.
8. Lifting speed is less than 1500mm/min (23mm/s), it can be 46mm/s on special occasions.
9.Efficiency is less than 33%, function of self-locking, the screw lift with large ratio L1 absolutely self lock.
10.Can be matched with encoder, limit switch, dust cover,safety nut, reducer, common motor, servo motor, stainless materials,
11.Easy operation and maintenance, low noise.
1.Use design of special square groove housing to enhance the heat radiation ability of the shell and lengthen the service time of grease
2.The shell material of nodular cast iron substantially improve the tensile,performance of shell and extend the application under high and low temperature.
3.Use square rear cover to make the screw rod not auto rotate.
|Rated Dynamic Load (KN)||5||10||20||50||80||100|
|Screw diamaterxlead (mm)||Tr18x4||Tr20x4||Tr30x6||Tr40x7||Tr50x8||Tr60x9|
|Worm Gear Ratio||V1||1:4||1:4||1:6||1:7||1:8||1:8|
|Screw stroke/ 1 R of worm input (mm)||V1||1||1||1||1||1||1.125|
|Max. Input Power (KW)||V1||0.3||0.57||1.14||2.2||2.5||3|
|Max. start torque with full load (Nm)||V1||4.2||8||18||48.5||75||100|
|Rotating efficiency at 1500rpm||V1||0.34||0.35||0.33||0.32||0.31||0.33|
|Torque without load (Nm)||V1||0.11||0.29||0.4||0.84||1.85||2.1|
|Box Material||Modular Cast Iron|
|Box Weight (kg)||3.2||5||8.5||21.5||36||58|
|Screw rod +protective tube weight per 100mm (kg)||0.36||0.57||0.75||1.52||2.44||3.02|
|Rated Dynamic Load (KN)||200||300||450||700||1000|
|Screw diamaterxlead (mm)||Tr80x12||Tr100x16||Tr120x16||Tr140x20||Tr160x20|
|Worm Gear Ratio||V1||1:8.75||1:10.25||1:10.75||1:13.33||1:13.33|
|Screw stroke/ 1 R of worm input (mm)||V1||1.371||1.56||1.49||1.5||1.5|
|Max. Inout Power (KW)||V1||4||7||11.5||18.5||22|
|Max. start torque with full load (Nm)||V1||265||460||675||1050||1620|
|Rotating efficiency at 1500rpm||V1||0.33||0.33||0.3||0.31||0.29|
|Torque without load (Nm)||V1||2.8||3.8||5.5||8.5||11|
|Box Material||Modular Cast Iron|
|Box Weight (kg)||72||110||200||400||800|
|Screw rod +protective tube weight per 100mm (kg)||4.5||6.8||9||12.5||18.5|
1.The screw lifts are widely used in :
2.Transmission unit and digital control execution of machinery.
3.Roller motion device of metallurgy.
4.Steel ladle lifting, turning over unit and movement transmission unit in the occasion where people can’t go.
5.Lifting unit, automatic or remote control opening of large windows and doors in architecture filed and 6.Sluice gate opening in water conservancy field.
7.Large flexible clamping, transposition tooling, welding robot.
8.Remote sensing of radar and solar energy.
10.Lifting unit of lift stage and automobile industry..
1.Reasonable selection of lubricant oil, especially, the reducer which with power more than 11KW should be infused by medium load gear oil.
2.Inspect the lubricant oil, hydraulic oil, coolant,oil level and quality, also check the sealing of complete machine.If you find the oil is lack or overmuch during the inspection, please analyze the reasons.
3.Strengthen the lubrication at each lubricating points. Suggest add lubricant grease in the lubricating points weekly during the run-in period. (except for the special requirement)
4.Please make sure that the rotating direction of oil pump is clockwise when connect the vertical reducer which with oil pump to power supply.
5. Quick wearing: Due to spare parts process, assemble and debugging of the new reducer, the contact area of matching surface is smaller, while the allowable torque is larger. During the running of reducer, the concave and convex section of component surface tabling rub mutually, the dropped metal debris again serve as abrasive to take part in friction continuously, this even more accelerate the wear of component matching surface. So during the run-in period, the spare parts are easily worn ( especial the matching surface).
1. What’s your delivery time?
Lead time: Normally 15-25 days after confirm your deposit. Products in stock will be delivered 3-5 days after your deposit.
2. What’s your MOQ?
MOQ is 1 PC
3. How long is your warranty?
Warranty: 1 year
4. Screw lift can be customized?
Yes, please send your technical requirement for our confirmation.
5. Where is the screw lift manufactured?
Produced in China mainland..
6. Your screw lift was ever shipped to which countries?
Our gearbox has been sold to various countries like Russia, Vietnam, Canada, Australia, UAE, Japan etc..
7.You are a factory or trading company?
We are factory, the manufacturer.
