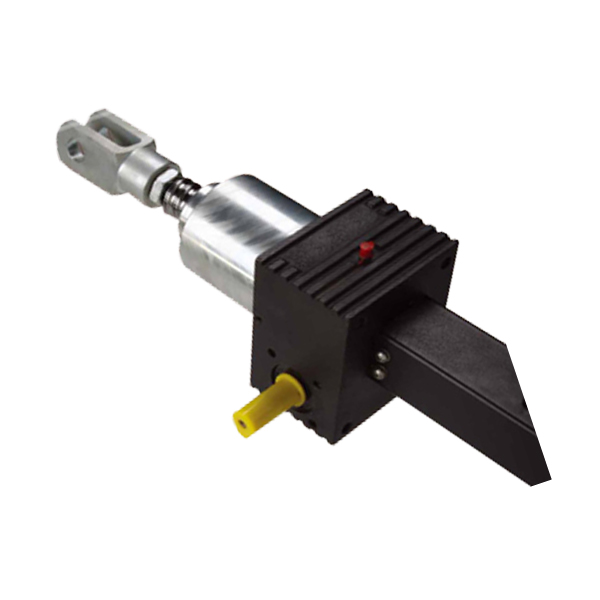

SJB ball screw lift is the square shell equip with ball screw rod, it has features of high transmission efficiency, high precision and long life-time. The life time depend on the life time of ball screw rod and the spare parts like worm gear. We mainly proofread life time of ball screw rod, the worm gear will be worn while its life time is longer than ball screw rod’s.
The ball screw lift without self locking, so we advise add a brake to ensure the security of equipment.
Complete accessories: Safety nut, Taiwan Ball screw rod, Dust cover, Anti-backlash design, limit switch, overload clutch, potentiometer, encoder,brake, hand crank.
This screw lift most is used in the occasions which require for high precision and high-end automatic equipment.
The working temperature of this screw lift is -20℃+40℃, if you need -40℃-+70℃, please contact us. Both double and three screw lead can be offered, the lift speed proportionally increase.
SJA Screw lift has the features of:
1. Highest push speed can reach to 77mm/s: Due to the high efficiency, low heating.
2. High efficiency: There are many balls between screw shaft and nut, they make rolling motion to reduce friction so that high efficiency can be realized.
3. The stroke range can reach to 6.5m
4. The precision of standard product can be 0.02mm: Ball screw rod is produced by Taiwan advanced producing technology: the procedure of milling, assemble, inspection and the working condition of temperature and humidity are strictly controlled, the perfect quality management system completely guarantee the precision.
5. No backlash, high rigidity: The ball screw rod can make radial backlash be minus value due to pre -compression; Through adding pressure to the balls, the repulsion of balls can enhance the rigidity of nut when the screw lift work for mechanical device.
6. Micro feeding: Since the screw rod is started by ball motion, so the start torque is very small, no scramble , this can ensure the precise micro feeding.
7. Absolute mechanical synchronization, high precision, stable transmission.
8. High impact resistance.
9. Rolling and precise ball screw lift can be offered
10. More than 50% of working days
1.Use design of special square groove housing to enhance the heat radiation ability of the shell and lengthen the service time of grease
2.The shell material of nodular cast iron substantially improve the tensile,performance of shell and extend the application under high and low temperature.
3.Use square rear cover to make the screw rod not auto rotate.
4. Use design of safety nut to monitor the wear condition of products and eliminate the hazards
|Max. Lift Force (KN)||10||20||20||20||50||35||60||60||80||70||90||100||150|
|Rated Dynamic Load (KN)||11||17||25||25||46||30||53||56||71||62||78||97||111|
|Screw diamaterxlead (mm)||20x5||32x5||32x10||32x20||40x10||40x20||50x10||50x20||63x10||63x20||80x10||80x20||100x20|
|Worm Gear Ratio||V1||1:4||1:6||1:6||1:6||1:7||1:7||1:8||1:8||1:8||1:8||1:8.75||1:8.75||1:10.25|
|Screw stroke/ 1 R of worm input (mm)||V1||1.25||0.83||1.67||3.34||1.43||2.86||1.25||2.5||1.25||2.5||1.14||2.28||1.95|
|Max. Inout Power (KW)||V1||0.57||1.14||1.14||1.14||2.2||2.2||2.5||2.5||3||3||4||4||7|
|Max. start torque with full load (Nm)||V1||4.8||8.2||15.3||29.2||34.4||47.4||36.8||72.3||49||82.9||53.2||118||157|
|Rotating efficiency at 1500rpm||V1||0.59||0.58||0.62||0.65||0.59||0.6||0.58||0.59||0.58||0.62||0.55||0.55||0.53|
|Box Material||Modular Cast Iron|
|Box Weight (kg)||6||9.5||9.5||10||23||24||38||40||62||64||78||78||125|
|Screw rod +protective tube weight per 100mm (kg)||0.57||0.8||0.8||0.8||1.6||1.6||2.5||2.5||3.2||3.2||4.6||4.6||7.3|
1.The screw lifts are widely used in :
2.Transmission unit and digital control execution of machinery.
3.Roller motion device of metallurgy.
4.Steel ladle lifting, turning over unit and movement transmission unit in the occasion where people can’t go.
5.Lifting unit, automatic or remote control opening of large windows and doors in architecture filed and 6.Sluice gate opening in water conservancy field.
7.Large flexible clamping, transposition tooling, welding robot.
8.Remote sensing of radar and solar energy.
10.Lifting unit of lift stage and automobile industry.
Common problems and solutions for screw lift during operation: There may be a problem of vibration when use the screw lift. Reasons as following:
1.Improper connection of original motor and screw lift cause the shaking; Solution: Adjust the connection to the proper position.
2.The worm gear pairs were worn too much or damaged; solution: Ask the manufacturer to change the worm gear pairs and timely discuss the usage with the manufacturer.
3.Bearing wearing, if the bearing was worn during the using, it will cause heavy vibration and noise; solution: change the bearing.
4.The bolt get loose; solution: Fastening the bolts on the mounting surface of screw lift.
Proper usage of lubricant grease:
1.Change the grease brand according to different ambient temperature( high or low temperature)
2.Grease special for food industry can be offered
3.Suggest thoroughly clean the worm gearbox and grease again within 5 years. For the unit which is used all year round, grease lost lubricity after 5 years, maybe some impurity particles make the working condition worsen.
4.Suggest use grease tank to provide continuous automatic lubricating for the screw lift box.
5.To lubricate the inside of greased plated which inside of rear cover of SJB ball screw lift regularly and properly.
6.The nut and screw rod should be greased after every working time of 200hrs.
1. What’s your delivery time?
Lead time: Normally 15-25 days after confirm your deposit. Products in stock will be delivered 3-5 days after your deposit.
2. What’s your MOQ?
MOQ is 1 PC
3. How long is your warranty?
Warranty: 1 year
4. Screw lift can be customized?
Yes, please send your technical requirement for our confirmation.
5. Where is the screw lift manufactured?
Produced in China mainland..
6. Your screw lift was ever shipped to which countries?
Our gearbox has been sold to various countries like Russia, Vietnam, Canada, Australia, UAE, Japan etc..
7.You are a factory or trading company?
We are factory, the manufacturer.
