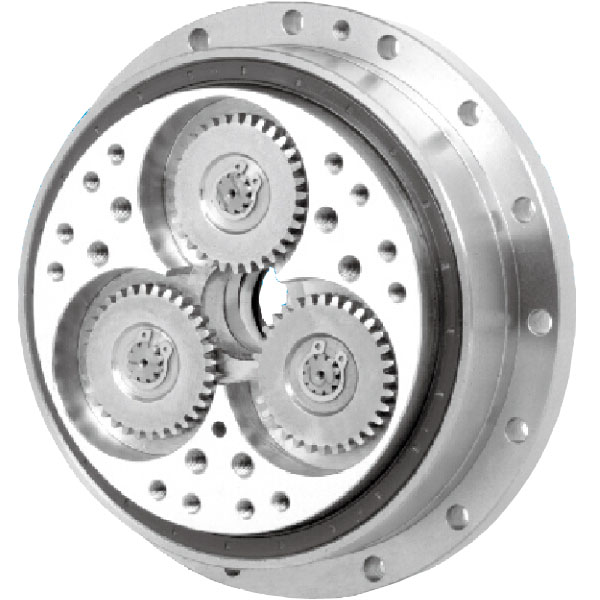

Structure of cycloidal pin gear speed reducer RV-E series consists of main bearing internal mechanism,double reduction gear,double column support mechanism,rollingcontact mechanism and pin gear mechanism.
FHTW RV-E gearbox is developed for robotic industries.The size of RV-E gearbox is compact and light weight and short dimension could eliminate the inertia of Robot swing to achieve high precise positioning .
RV-E precision reduction gear has excellent accuracy, rigidity, torque, and load sup capabilities.The RV-E series gearbox is highly regarded for its reliability and has the number one market share in the world for precision reduction gears.
Feature of RV-E gearbox
2.High torsional rigidity
3.Strong impact resistance
4.Excellent starting efficiency
5.Wear small, long service life
6.Low backlash, less than 1 arc.min.
7.Lost motion less than 1 arc.min.
8.Internal main bearing

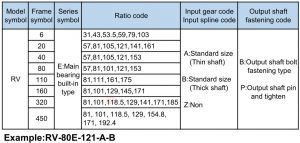

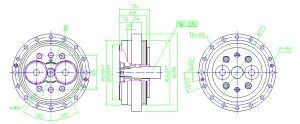

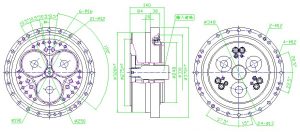

Model selection 0f RV-E gearbox

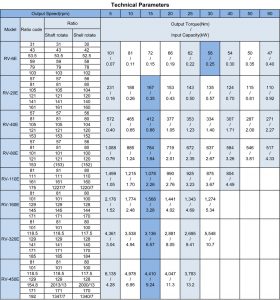

Technical parameters of RV-E gearbox
FHTW RV-E gearbox is widely used in palletizing robot,rotating work platform,kinds of locator,robot joints,machine tool,medical apparatus and instruments,ATC device,AGV driver, lid switch gear
